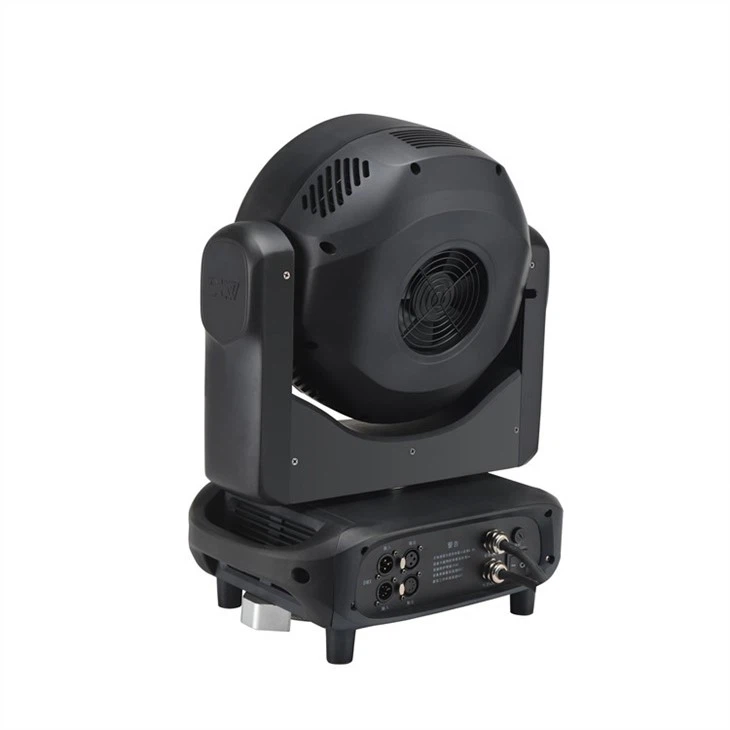

12pcs LED Tsiv Lub Taub Hau
Cov ntsiab lus
DLW 4012 WASH yog RGBW LED theem teeb, siab -kev ua tau zoo ntxuav lub taub hau, uas siv 12 OSRAM 40W RGBW 4in1 LED engine. Koj tuaj yeem tswj tau txhua qhov LED txhua xim ib tus zuj zus ntawm koj qhov kev xav tau.
DLW 4012 WASH, tsis yog tsuas yog muaj ntau yam LED raws li kev ntxuav txav lub teeb, tab sis kuj yog lub teeb zoo meej LED ntxuav beam txav teeb. Nws suav nrog ua -hauv cov teebmeem macro, xim ntshiab thiab saturated, 4.5℃~ 45℃zoom ntau yam, tsis tshua muaj suab nrov, siab brightness ntawm lub teeb tso zis.
● Lub teeb ci: OSRAM 40W RGBW LED x 12 pcs
● Zoom ntau yam: 4.5℃~ 45 degree
● Txhua qhov LED tuaj yeem tswj tau tus kheej
● Xim kub: 2800K-8000K linear hloov
● Ua -hauv 38 macro teebmeem
Xa kev nug
Product Details of 12pcs LED Tsiv Lub Taub Hau
Hluav taws xob
Input voltage: 100V-240V 50-60Hz
Lub zog nkag: 550W, PF Ntau dua lossis sib npaug rau 0.98
Qhov siab tshaj tawm tam sim no: 5.5 A
Lub teeb Source
Lub teeb ci: OSRAM 40W RGBW LED x 12 pcs
LED module yuav tsum lifespan: 50000 Teev
Optics& Cov ntaub ntawv Photometric
Zoom ntau yam: 4.5℃~ 45 degree
Cov teebmeem Configuration
Txhua qhov LED tuaj yeem tswj tau tus kheej, preset 38 macro teebmeem
Xim kub: 2800K-8000K linear hloov
Xim & duab tuaj yeem kho thiab ua ke ntawm qhov xav tau
Dimmer: 0-100% hluav taws xob dimming tswj
Strobe nrog ceev hloov ntawm 1 mus rau 25 flashes ib ob
Fixture Movement
PAN=540℃- 16 ntsis
TILT=270℃- 16 ntsis
Electronic Control
Channel: 11Ch (HSI) / 17Ch (tus qauv) / 18Ch (graphics) / 58Ch (pixel tswj kev nthuav dav);
Tswj Cov Txheej Txheem: DMX512, RDM; (optional: Art-Net, sACN, wireless function)
Tswj Portals: XLR-3 + XLR-5 Hauv/Thru ; (optional Ethernet chaw nres nkoj: RJ45 Hauv / Tawm)
Fais fab txuas: Waterproof Locking Fais Fab Hauv / Tawm
Daim ntawv qhia zaub mov: 2.4 "LCD npo; Suav thiab Askiv, ntawv qhia zaub mov muaj los tso saib 180℃thim rov qab
Ua tau -hauv tus kheej- roj teeb rov qab tau, cov ntawv qhia zaub mov hloov pauv tsis muaj lub zog muaj (yeem)
txhawb lwm lub txhab nyiaj them nyiaj nkag mus rau cov ntawv qhia zaub mov kom teeb tsa chaw nyob thiab lwm qhov chaw
Electronic sensing detection, kiv cua ntse nrhiav thiab tswj
Eco hom (Pw tsaug zog hom thaum standby)
Loj & Nyhav
Fixture loj: (389X389X477) mm (Integrated nuv)
Qhov hnyav: 18.5 kg
Davhlau loj: (790X520X750) mm (2 txoj haujlwm)
Davhlau hnyav: 31 kg
Thawv loj: 475X410X550 mm (1 txoj haujlwm)
Cov xwm txheej ua haujlwm
Yam tsawg kawg nkaus thiab siab tshaj plaws ambient kub: -20℃~ 40 degree
Kev tiv thaiv ntsuas: IP20
Specifications thiab cov ntaub ntawv yuav hloov tsis tau ceeb toom.
