4-hauv-1 Sab Nraum Tsiv Lub Taub Hau
Cov ntsiab lus:DLW L600BSWF IP yog qhov tsawg tshaj plaws 4-hauv-1 luminaire hauv nws chav kawm rau tag nrho{17}} huab cua kev siv. Txawm hais tias me me, nws muab lub teeb pom kev zoo los ntawm 600W dawb LED lub cav thiab muaj cov yam ntxwv uas koj xav tau hauv cov khoom siv loj dua, kim dua. Kev siv cov txheej txheem infinite rotatable framing thiab precision optical system, nws muab ib tug zoom ntau yam ntawm 3℃mus rau 42 degree, ntshiab CMY xim mixing system thiab linear CTO, 9 xim lim; nruab nrog 1 rotating gobo log nrog 7 rotating high-txhais gobos, 1 zoo li qub gobo log nrog 12 gobos; kuj muaj xws li 1 animation log, dual rotating prisms thiab 1 Frost atomizer; nrog ntau tus neeg siv xaiv dimming nkhaus. DLW L600BSWF IP yog tag nrho ntim rau hauv ib hom tshiab ntawm Carbon Fiber Housing, ingress tiv thaiv ntsuas IP66. Nws versatility ua rau nws haum rau sab nraum zoov / sab hauv tsev installation, ua yeeb yam thiab concerts.
600W LED dawb lub teeb module
Zoom ntau yam 3℃~ 42 degree
CMY + CTO + 9 xim
Rotating gobo log
Static gobo log
Animation log
Infinite framing system
Frost thiab Ob chav prisms
Kev tiv thaiv ntsuas IP66
Xa kev nug
Product Details of 4-hauv-1 Sab Nraum Tsiv Lub Taub Hau
Hluav taws xob Specification
Cov tswv yim Voltage: AC100-240V 50/60Hz
Kev tawm tswv yim siab tshaj plaws: 850W, PF Ntau dua lossis sib npaug rau 0.98
Qhov siab tshaj tawm tam sim no: 8.5A
Lub teeb qhov chaw
Lub teeb qhov chaw: 600W Dawb LED module
Ra Ntau dua lossis sib npaug rau 70
LED module lifespan: 20000 teev
Optics& Cov ntaub ntawv Photometric
Frontal lens: siab txhais optical lens nrog anti- reflection txheej.

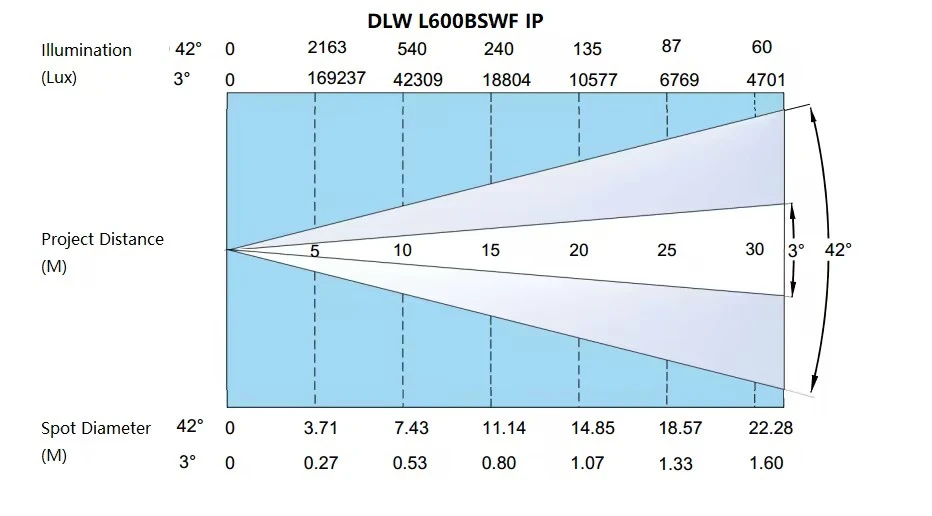

Zoom ntau yam: 3℃~ 42 degree
Xim System
CMY infinite mixing, tso zis siab saturated xim (RGB), xim ntshiab.
CTO 2700-6900K linear adjustable xim kub.
9 xim lim.

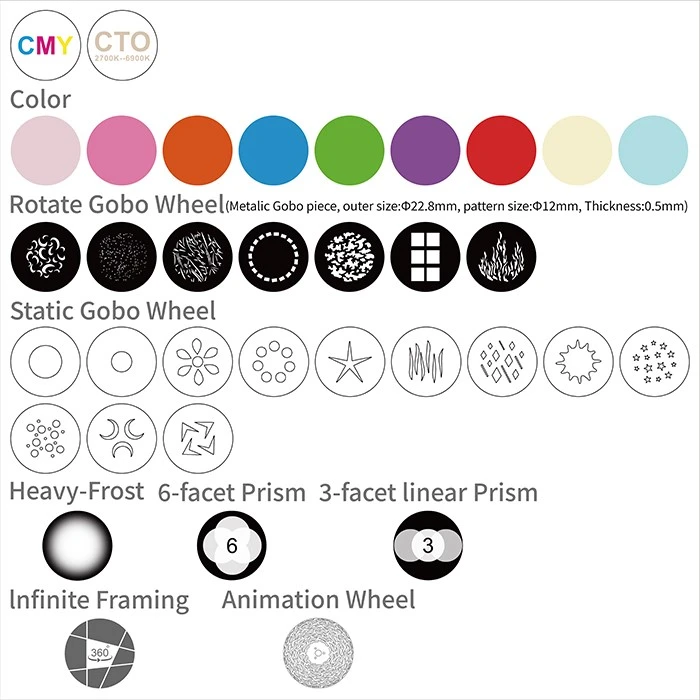

Gobo system
Ib lub phaj rotating gobo nrog 7 bi-directional rotating gobos. Nws tuaj yeem tig rau hauv ob qho kev taw qhia, muaj scrolling thiab jitter teebmeem, thiab
lub log gobo tuaj yeem muab qhov tseeb nrog 16 khoom.
Ib qho zoo li qub gobo log, 12 gobo teebmeem, tuaj yeem ua tiav scrolling thiab co teebmeem.
Ib qho animation wheel effect, uas tuaj yeem txav mus tas li simulate huab, nplaim taws, thiab cov teebmeem scrolling.
Framing system
Ib lub kaw lus kaw, 4 x ib tus neeg tuaj yeem tswj tau cov hniav, ua tiav cov duab kos tuaj yeem yog +-360℃infinite rotating thiab meej qhov chaw, tsis muaj distortion.
Cov khoom siv cuam tshuam
2 prisms (6 facet voj voog + 3-facet linear), nrog linear zoom thiab tsom, tuaj yeem overlaying lossis ywj siab tig rau ob qho tib si.
Ib qho Frost nrog linear zoom thiab tsom.
0-100% hluav taws xob dimming tswj, 4 xaiv ntawm dimming nkhaus, 4 xaiv ntawm dimming speeds.
Electronic strobe 1-25HZ, nrog ntau txoj kev xaiv strobe.
Fixture Movement Parameters
PAN=540℃- 16 ntsis
TILT= 270℃- 16 ntsis
Electronic Control
DMX Channel: 38 Ch / 35 Ch / 60 Ch;
Tswj Cov Txheej Txheem: DMX512, RDM; (optional: Art-Net, sACN, wireless function)
Cov ntaub ntawv Portals: Waterproof XLR-3 + XLR-5 Hauv/Thru ; (optional Ethernet chaw nres nkoj: RJ45 Hauv / Tawm);
Fais fab Portals: Waterproof Locking Fais Fab Hauv / Tawm;
Daim ntawv qhia zaub mov: 2.4 "LCD xim npo; Suav thiab Askiv, ntawv qhia zaub mov muaj los tso saib 180℃thim rov qab;
Kev ntsuas hluav taws xob sensors, kiv cua ntse nrhiav thiab tswj;
Eco hom (pw tsaug zog hom thaum standby);
Tsis yog - kov sib nqus encoder positionable system rau lauj kaub - qaij;
Loj & Nyhav
Fixture loj: 389x389x681 mm (Integrated nuv)
Net nyhav: 29kg
Davhlau rooj loj: (908X560X910) mm (2 txoj haujlwm)
Lub dav hlau hnyav: 45 kg
Thawv loj: 505X405X845mm (1 txoj haujlwm)
Cov xwm txheej ua haujlwm
Ua haujlwm kub: -20 ℃ ~ 40 ℃
Kev tiv thaiv tus nqi: IP66
Specifications thiab cov ntaub ntawv yuav hloov tsis tau ceeb toom.
