Sab nraum zoov Tsiv Lub Taub Hau Teeb
Cov ntsiab lus
DLW 480B IP sab nraum zoov txav lub taub hau lub teeb yog lub teeb pom kev zoo uas muaj IP66 thaiv. Nws muaj peev xwm tsim cov teeb pom kev zoo nkauj zoo nkauj hauv tsev thiab sab nraum zoov. Tag nrho -paj aluminium alloy vaj tsev muab cov plua plav-dawb ib puag ncig rau optic, gobo, thiab xim system, tshem tawm qhov xav tau kev tu thiab tu ntau zaus.
Nruab nrog OSRAM 482W arc teeb thiab siab - zoo optics, nws tsim lub ci ci, siv lead ua ntshiab, thiab ntse -edged beam raws li nqaim li 1.8℃. Qhov zoo li qub gobo log ua haujlwm cov duab nraaj hauv huab cua nrog cov duab zoo nkauj thiab zoo sib xws. Thaum ua ke nrog lub rotating prisms thiab xim log, nws tsim ntau yam kab teeb thiab ib tug ntxim nyiam "paj" nyhuv. Tsis tas li ntawd, 6-xim phaj, hluav taws xob dimming, strobe, thiab frosts muab kev nplua nuj ntxiv.
DLW 480B IP yog tsim rau cov teeb pom kev zoo hauv architecture, sab nraum zoov theem teeb pom kev zoo, thiab zoo meej rau cov chaw ua si, tourism, vaj tse, choj thiab txhua yam txheej xwm.
Nws yog ib qho kev txhim khu kev qha sab nraum zoov lub taub hau teeb uas tuaj yeem tiv taus nag thiab xuab zeb.
● Lub teeb ci: OSRAM SIRIUS HRI 482W
● Beam kaum sab xis: 1.8 degree
● Linear CMY
● Ib lub log xim
● Ib qho zoo li qub gobo log
● Ib lub lim dej khov
● 6-xim phaj
● Ob chav prisms
● Electronic linear dimming
● Kev tiv thaiv tus nqi: IP66
Xa kev nug
Product Details of Sab nraum zoov Tsiv Lub Taub Hau Teeb
Hluav taws xob Specification
Input voltage: AC100-240V 50/60Hz
Lub zog nkag: 700W, PF Ntau dua lossis sib npaug rau 0.98
Qhov siab tshaj tawm tam sim no: 7A
Lub teeb Source
Lub teeb qhov chaw: OSRAM SIRIUS HRI 482W
Lub teeb qhov xav tau lifespan: 1500 teev
Optics& Cov ntaub ntawv Photometric
Pem hauv ntej lens: siab- txhais lo ntsiab muag nrog anti-paj yeeb yaj kiab, txoj kab uas hla ntawm lub lens pem hauv ntej: 200mm
Beam kaum sab xis: 1.8 degree
Xim System
CMY infinite xim sib tov
Ib lub log xim, 11 x xim lim ntxiv rau qhib, lub log xim tuaj yeem tig ob qho tib si, zaj sawv, kauj ruam, zawv zawg gradient xim hom
Gobo System
Ib qho zoo li qub gobo log nrog 12 gobos ntxiv rau 7 lub voj voog -zoo li qhib, scrolling, co teebmeem
Cov teebmeem Configuration
Independent Frost lim
Mechanical Dimmer: 0-100% hluav taws xob linear hloov
Fast strobe, ntau txoj kev xaiv strobe, mem tes, asynchronism, synchronism, random qeeb, nruab nrab, ceev ceev
8-facet prism thiab 24-facet prism + 6- xim phaj, overlay kom ua tiav cov txheej txheem ntau txheej, tig rau ob qho tib si
Fixture Movement Parameters
PAN =540℃- 16 ntsis
TILT=270℃- 16 ntsis
Electronic Control Technology
DMX Channels: 20 Ch / 24 Ch / 28 Ch
Tswj Cov Txheej Txheem: DMX512, RDM; Art-Net, sACN, wireless function (yeem)

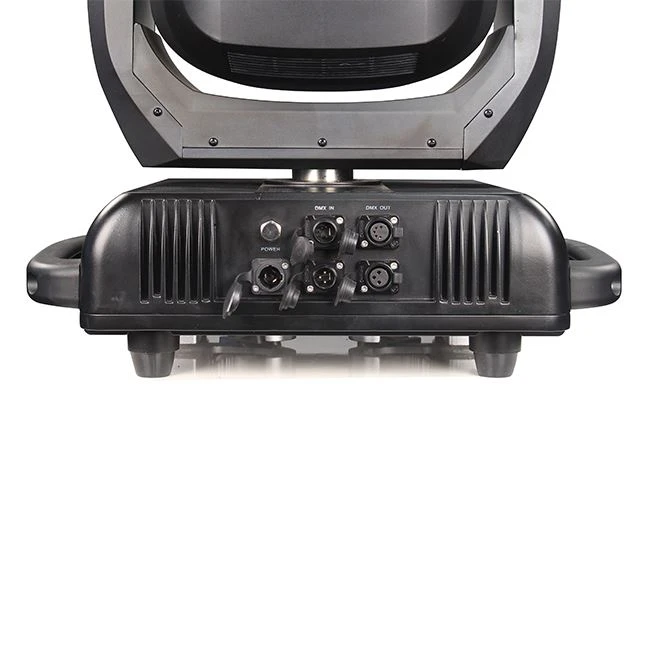

Cov ntaub ntawv Portals: Waterproof XLR-3 + XLR-5 Hauv/Thru ; (optional Ethernet chaw nres nkoj: RJ45 Hauv / Tawm);
Fais fab Portals: Waterproof Locking Fais Fab hauv;
Ntawv qhia zaub mov: 2.4 "LCD xim npo; Suav thiab lus Askiv, tso saib tau tig 180 degree
Electronic sensing detection, kiv cua ntse nrhiav thiab tswj
Eco hom (pw tsaug zog hom thaum standby)
Tsis yog -kov magnetic encoder positionable system rau lauj kaub - qaij
Loj & Nyhav
Fixture loj: (443X443X780) mm (Integrated nuv)
Net nyhav: 42 kg
Davhlau loj: (935X530X630) mm (1 txoj hauj lwm)
Davhlau case net hnyav: 26 kg
Thawv loj: 615X455X945 mm (1 txoj haujlwm)
Cov xwm txheej ua haujlwm
Ua haujlwm kub: -20 ℃ ~ 40 ℃
IP tus nqi: IP66
Specifications thiab cov ntaub ntawv yuav hloov tsis tau ceeb toom.
