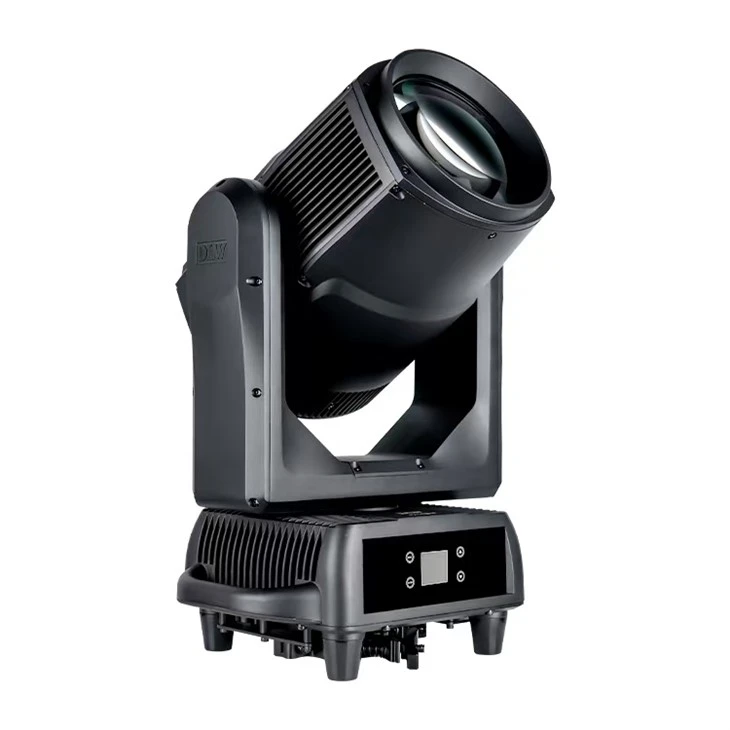

Sab nraum zoov Sharpy Beam Fixture
Cov ntsiab lus:
DLW 420BV IP beam txav taub hau qhia txog ntau yam thiab kev ntseeg tau. Engineered nrog qhov kev ntsuas IP66 muaj zog, nws sawv cev tsis muaj plua plav thiab ya raws, xa cov kev ua haujlwm tsis zoo hauv txhua qhov chaw - txawm tias nyob hauv tsev nyob rau hauv kev tswj hwm lossis sab nraum zoov ntawm cov ntsiab lus. Ntawm nws lub siab, lub zog 420W luv luv-arc teeb ua rau lub teeb ci ntsa iab nrog lub neej ntev tshwj xeeb los xyuas kom meej, qhia- nres teeb pom kev zoo tom qab ua haujlwm.
Tsim los ntawm 420W luv-arc tawm teeb, lub teeb pom kev zoo muab lub teeb ci tshwj xeeb, siab - siv lub teeb nrog lub neej zoo thiab ua haujlwm zoo ib yam. Nws qhov kev kho qhov muag pom tseeb ua rau lub ultra- nqaim 1.8℃nqaj kaum sab xis, tsim rab chais- cov teebmeem dav dav uas hla huab cua nrog qhov pom tseeb thiab cuam tshuam.
Tsim kom muaj tswv yim yooj yim tshaj plaws, DLW 420BV IP Sab Nraud Sharpy Beam Fixture nta lub log zoo li qub, 8-facet thiab 24-facet rotating prisms, linear frost, thiab 14 dichroic xim lim, tso cai rau cov tsim teeb pom kev zoo los tsim cov teeb pom kev zoo, kev sib hloov cov xim zoo nkauj, thiab cov xim zoo nkauj. Cov txheej txheem kho qhov muag siab ua kom pom tseeb, ua kom muaj xim zoo nkauj, thiab pom kev zoo nkauj rau kev tsim khoom ntawm txhua qhov teev.
Txawm hais tias siv rau kev ncig xyuas kev hais kwv txhiaj, kev ua koob tsheej, kev ua yeeb yam, cov chaw ua si, kev teeb tsa vaj tse, lossis loj - cov xwm txheej sab nraum zoov, DLW 420BV IP Sab Nraud Sharpy Beam Fixture muab qhov tshwj xeeb ci ntsa iab, txhim khu kev qha huab cua tsis zoo, thiab muaj peev xwm ua tau zoo, ua rau nws muaj peev xwm ua tau zoo rau kev tsim teeb pom kev zoo tshaj plaws rau kev pom kev zoo tshaj plaws rau cov neeg tsim khoom.
Feature tseem ceeb:
Lub teeb qhov chaw: PHILIPS MSD Platinum 19 R LL (420W)
Beam kaum sab xis: 1.8 degree
Frontal Lens: 165 hli
Ib tug static gobo log
Ib lub log xim
Ib qho Frost
Ob chav prisms
Kev tiv thaiv tus nqi: IP66
Xa kev nug
Product Details of Sab nraum zoov Sharpy Beam Fixture
Hluav taws xob Specification
Kev tawm tswv yim Voltage: AC100-240V 50/60Hz
Lub zog hluav taws xob: 550W
Qhov siab tshaj tawm tam sim no: 5.5 A
Lub teeb qhov chaw
Lub teeb qhov chaw: PHILIPS MSD Platinum19 R LL
Lub neej kev cia siab: 5000 teev
Optics& Cov ntaub ntawv Photometric
Frontal lens: siab txhais optical lens nrog anti- reflection txheej.
Beam kaum sab xis: 1.8 degree
Xim System
1 xim log nrog 14 xim lim + 1 qhib dawb, ua kom muaj kev hloov xim bidirectional
Zaj sawv, kauj ruam, thiab swb gradient xim hom
Gobo system
Ib lub log zoo li qub nrog 18 gobos (7 puag ncig qhib), txhawb nqa ntws thiab co teebmeem.
Cov teebmeem Configuration
1 frost effect
Mechanical linear dimming: 0-100%
Kev nrawm nrawm nrog ntau hom strobe: mem tes, asynchronous, synchronous, random (slow / nruab nrab / nrawm)
8-facet prism + 24-facet prism, muaj peev xwm overlaying multi-layer beam teebmeem nrog bidirectional rotation
Fixture Movement Parameters
PAN=540℃- 16 ntsis
TILT= 270℃- 16 ntsis
Electronic Control
DMX Channel: 20CH / 23CH / 29CH
Tswj Cov Txheej Txheem: DMX512, RDM; (optional: Art-Net, sACN)
Cov ntaub ntawv Portals: Waterproof XLR-3 + XLR-5 Hauv/Thru ; (optional Ethernet chaw nres nkoj: RJ45 Hauv / Tawm);
Fais fab Portals: Waterproof Locking Fais Fab Hauv / Tawm;
Ntawv qhia zaub mov: 1.77 "LCD, ntawv qhia zaub mov yuav ua tau 180℃rov qab zaub;
Hluav taws xob sensor ntes, kiv cua ntse ntes thiab tswj qhov kub thiab txias;
Txhawb zog txuag hom nrog standby / pw tsaug zog muaj nuj nqi;
Tsis yog - kov qhov sib nqus encode txoj haujlwm rau lub lauj kaub - qaij txav;
Loj & Nyhav
Fixture loj: 362X362X608 (mm) (Integrated nuv)
Net nyhav: 24.5 kg
Davhlau loj: (1022X520X742)mm (2 txoj haujlwm)
Lub dav hlau hnyav: 40 kg
Thawv loj: 505X465X649 mm (1 txoj haujlwm)
Cov xwm txheej ua haujlwm
Ua haujlwm kub: -20 ℃ ~ 40 ℃
Kev tiv thaiv tus nqi: IP66
