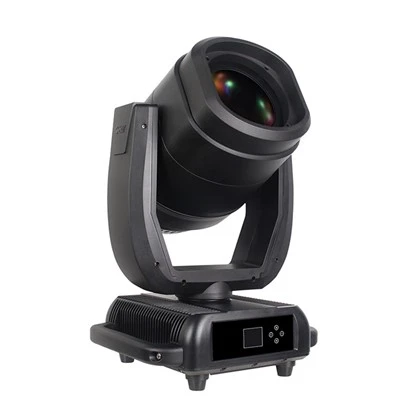

IP66-rated Beam Wash Fixture
Cov ntsiab lus:
DLW L4019C4W IP yog nruab 19 x 40W RGBW LED, ntau yam kho qhov muag qhov muag muab lub kaum ntse ntse kho tau, los ntawm qhov nruj 4.5℃mus rau qhov dav 45℃ntxuav, muab lub teeb ci ntsa iab los npog qhov xav tau theem lossis kev ua haujlwm, ib qho kev ntxuav fixture.
DLW L4019C4W IP yog koj cov khoom siv teeb pom kev zoo rau txhua daim ntawv thov teeb pom kev zoo, txawm tias nyob rau sab nraum zoov tsis zoo, qhov tshwm sim tiag tiag. Nws tsim muaj zog, muaj yeeb yuj nruab nrab - huab cua beams nrog rau qhov dav dav thiab txawm tias ntxuav, ture IP66- ntsuas txhua huab cua LED yoke Wash fixture.
● Lub teeb ci 40W RGBW LED x 19 pcs
● Zoom ntau yam 4.5℃-45 degree
● RGBW xim sib xyaw, Circled tswj, Zaj sawv los
● Xim kub 2700K-8000K linear adjustable
Xa kev nug
Product Details of IP66-rated Beam Wash Fixture
Hluav taws xob Specification
Tawm tswv yim voltage: AC100V-240V, 50-60Hz
Input zog: 800W
Tawm tswv yim tam sim no: 8.0 A
Lub teeb qhov chaw
Lub teeb ci: 40W RGBW LED x 19 pcs
LED cia siab lifespan: 50000 Hrs
Optics& Cov ntaub ntawv Photometric
Zoom ntau: 4.5℃-45 degree
Cov teebmeem Configuration
RGBW xim sib xyaw, Circled tswj, Zaj sawv los.
Preset ntau xim macro, ntau cov nyhuv macro.
Xim kub txawv linearly ntawm 2700K txog 8000K
0-100% hluav taws xob dimming tswj
Ceev ceev strobe 1-25Hz
Fixture Movement
PAN=540 degree
TILT=220 degree
Electronic Control
Tswj qauv: 19Ch / 27Ch
Tswj Cov Txheej Txheem: DMX512, RDM; (optional: Art-Net, sACN)
Cov ntaub ntawv Portals: Waterproof XLR-3 + XLR-5 Hauv/Thru ; (optional Ethernet chaw nres nkoj: RJ45 Hauv / Tawm);
Fais fab Portals: Waterproof Locking Fais Fab Hauv / Tawm;
Daim ntawv qhia zaub mov: 1.77 "LCD; cov ntawv qhia zaub mov tuaj yeem ua 180℃thim rov qab;
Electronic sensing detection, ntse kiv cua saib xyuas, tswj qhov kub thiab txias;
Txhawb zog txuag hom (standby hibernation muaj nuj nqi);
Tsis yog - kov qhov sib nqus encode txoj haujlwm rau lub lauj kaub - qaij;
Loj & Nyhav
Fixture loj: 390x390x520mm (Integrated nuv)
Qhov hnyav: 19 kg
Davhlau loj: 983X463X748 mm (2 txoj hauj lwm)
Lub dav hlau hnyav: 35.5 kg
Thawv loj: 625X385X505 mm (1 txoj haujlwm)
Cov xwm txheej ua haujlwm
Ua haujlwm kub: -20 ℃ ~ 40 ℃
Kev tiv thaiv tus nqi: IP66
