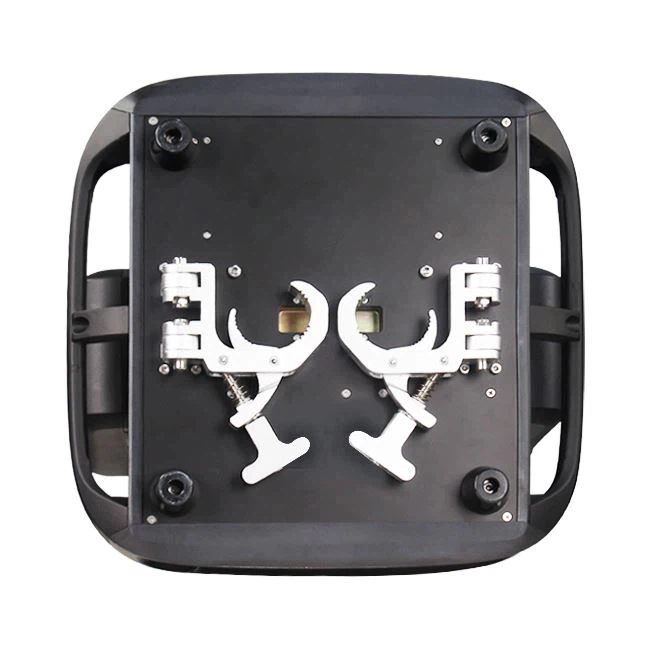

Theem Teeb pom kev txav taub hau
DREAM L1600HR WP
Cov ntsiab lus
DREAM L1600R WP yog lub ntsej muag ntse txav lub taub hau tsim rau kev teeb pom kev zoo.
Ua tsaug rau nws lub zog muaj zog 1600 watt LED lub cav thiab 200mm loj pem hauv ntej lens, DREAM L1600R WASH muab lub teeb muaj zog heev dav -txog 5℃~ 50℃zoom. Nws tuav lub siab tso zis thoob plaws nws tag nrho zoom teb. Tsis muaj qhov hloov pauv tam sim ntawd thaum tswj kab, thiab tsis muaj halo nyob rau hauv qhov chaw teeb pom kev zoo.
Thaum linearly dimmed rau lub teeb qis, WASH yuav ploj mus rau xim dub. Nws yuav muab cov xim nplua nuj rau koj nrog CMY xim sib xyaw ua ke, ob lub log xim scrolling, thiab lub liner tswj CTO.
DREAM L1600R WP tsis tsuas yog muab homogenized nplua nuj xim ntxuav, tab sis kuj muab cov cuab yeej muaj tswv yim zoo tshaj plaws rau cov duab profile. Nws yog cov cuab yeej kos duab nrog cov kab teeb pom kev zoo rau kev ua haujlwm hauv TV, tsos, ua yeeb yam thiab kev lom zem.
● Lub teeb qhov chaw: 1600W Dawb LED module
● Zoom ntau yam: 5℃~ 50 degree
● CMY+ CTO
● Dual xim log
● Ib qho framing system 90℃tig
● Ib lub lim dej khov
Xa kev nug
Product Details of Theem Teeb pom kev txav taub hau
Hluav taws xob Specification
Tawm tswv yim voltage: AC200-240V 50/60Hz
Input Power: 1720W, PF Ntau dua lossis sib npaug rau 0.98
Qhov siab tshaj tawm tam sim no: 8.6 A
Lub teeb Source
Lub teeb ci: 1600W Dawb LED module (xaiv hom ci ci siab lossis siab CRI hom)
Ra Ntau dua lossis sib npaug rau 70 (DREAM L1600R WP siab ci),
Ra Ntau dua lossis sib npaug rau 90 (DREAM L1600HR WP siab CRI)
LED module lifespan: 20000 teev
Optics& Cov ntaub ntawv Photometric
Lens: Siab- txhais lo ntsiab muag nrog tiv thaiv- zaj duab xis reflective
Zoom ntau yam: 5℃~ 50 degree
Xim System
CMY infinite mixing, tso zis siab saturated xim (RGB), xim ntshiab.
CTO xim kub linear adjustable 3200-6200K
Dual xim log, txhua tus muaj 6 cov ntxaij lim dej ntxiv rau qhib, tuaj yeem ua tau bidirectional scrolling, tuaj yeem tsim cov teebmeem ntawm zaj sawv, stepping, zawv zawg ploj thiab random xim hom.
Framing System
Ib qho framing system (frosted lub teeb controllable), 4 x ib tus neeg tswj tau cov ntaub thaiv npog, 90℃kev sib hloov tswj ntawm kev ua tiav framing.
Cov teebmeem Configuration
Ib tug switchable Frost lim
0-100% linear dimmer, xaiv 4 dimming nkhaus, xaiv 4 dimming speeds
Hluav taws xob strobe, nrog kev hloov ceev ntawm 1 txog 25 flashes ib ob, ntau txoj kev xaiv strobe
Fixture Movement
PAN=540℃- 16 ntsis
TILT=270℃- 16 ntsis
Electronic Control Technology
Tswj Channel: 27Ch / 29Ch / 47Ch.
Tswj Cov Txheej Txheem: DMX512, RDM; (optional: Art-Net, sACN, wireless function);
Cov ntaub ntawv Portals: XLR-3 + XLR-5 Hauv/Thru ; (optional Ethernet chaw nres nkoj: RJ45 Hauv / Tawm);
Fais fab Portals: Waterproof Locking Fais Fab hauv;
Daim ntawv qhia zaub mov: 3.5 "LCD xim kov npo; Suav thiab lus Askiv, ntawv qhia zaub mov muaj los tso saib 180℃thim rov qab.
Ua -hauv tus kheej- roj teeb rov qab, cov ntawv qhia zaub mov hloov pauv muaj yam tsis muaj hwj chim (yeem),
Txhawb kev them nyiaj sab nraud kom nkag mus rau hauv cov ntawv qhia zaub mov kom teeb tsa chaw nyob thiab lwm qhov chaw.
Electronic sensing detection, kiv cua ntse nrhiav thiab tswj.
Eco hom (pw tsaug zog hom thaum standby).
Tsis yog -kov magnetic encoder positionable system rau lauj kaub - qaij.
Loj & Nyhav
Fixture loj: (470X470X894) mm (Integrated nuv)
Qhov hnyav: 42.5 kg
Davhlau rooj loj: (760 X 550X 890) mm (1 txoj hauj lwm)
Lub dav hlau hnyav: 34 kg
Thawv loj: 615x555x1010 mm (1 txoj haujlwm)
Cov xwm txheej ua haujlwm
Yam tsawg kawg nkaus thiab siab tshaj plaws ambient kub: -20℃~ 40 degree
Kev tiv thaiv kev ntsuas: IP20
Specifications thiab cov ntaub ntawv yuav hloov tsis tau ceeb toom.
